Laser Welding MachineBT1200
Lightweight Design
High Performance
Quick Start
Multiple Protection
Consultation Email:sales@btxtec.com
Service Hotline:400 6016 900
Product Advantage*

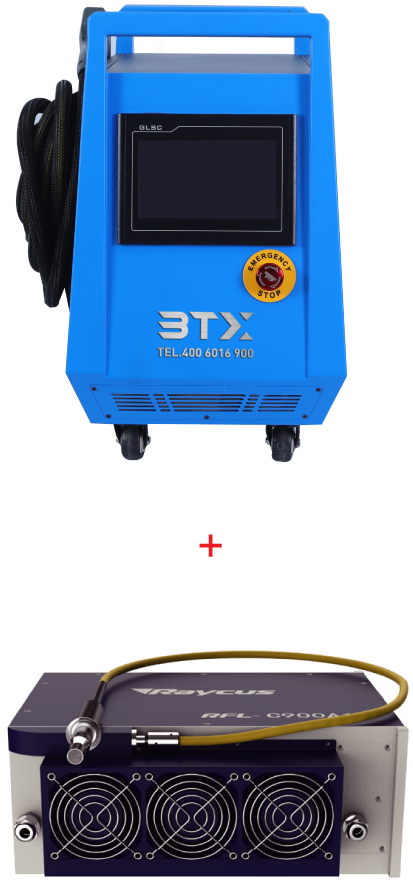

Configuration of the Raycus Welding General Series
Air-cooled laser for handheld welding
Air-cooled laser for handheld welding
Raycus Welding Series
Air-cooled laser for handheld welding
Air-cooled laser for handheld welding
Lightweight
Smallest size in the industry, 64-81 per cent smaller than before
37-63 per cent weight reduction
37-63 per cent weight reduction
High Efficiency
Continuous light output 7*24 hours
High beam quality fundamentally guarantees high product efficiency
High beam quality fundamentally guarantees high product efficiency
Intellectualise
Real-time viewing and control of equipment by mobile phone
High Reliability
Long-term aging test Power fluctuation ＜1%
The fan carries out intelligent temperature control, high temperature protection adapted to the full temperature scene,
Ensures continuous light output at room temperature for processing rhythms.
The fan carries out intelligent temperature control, high temperature protection adapted to the full temperature scene,
Ensures continuous light output at room temperature for processing rhythms.
Clever Design
Fibre optic lateral output in a compact design
High Stability
Six of the industry's highest levels of testing
Stable and reliable products
Stable and reliable products
High Adaptability
Cancellation of network and serial ports
Comes with 1.5 metre control wire terminal block
Adaptation to soldering wiring + communication scenarios
Comes with 1.5 metre control wire terminal block
Adaptation to soldering wiring + communication scenarios
Flexible and Portable
01
Small size and light weight
Suitable for every job site
Suitable for every job site
Out-of-the-box
02
Efficient and convenient
Significant savings in work preparation time
Significant savings in work preparation time
Easy Operation
03
Low technical requirements
Simple training to get started
Simple training to get started
Structural Simplicity
04
Relatively few points of failure
Low maintenance costs
Low maintenance costs
Beautiful weld seam
05
Smooth and flat surface
Uniform solder joints, no air holes
Uniform solder joints, no air holes
Wide range of applications
06
Cold regions or low temperature environments
It's working fine
It's working fine
APP real-time monitoring
07
Easy to grasp the operating status of the equipment
Provision of remote maintenance services
Provision of remote maintenance services
Product Parameters*
Operating Environment
| Content | BT1200 |
|---|---|
| Supply Voltage | Single-phase 220V+10%, 50Hz/60Hz AC |
| Environment | Flat, Vibration-free, Shock-free |
| Operating Temperature | 10℃~40℃ |
| Environmental Humidity | ≤70% |
Optical Parameter
| Content | Parameter |
|---|---|
| Output Power Instability | ≤+1.5% |
| Laser Power Adjustment Range | 10%~100% (Gradient Adjustable) |
| Centre Wavelength | 1080+5nm |
| Modulation Frequency | 1-5000Hz |
| Red Light Indicates Output Power | 0.5-1mW |
| Output Cable Length | 7m |
| Cooling Method | Air Cooling |
Mechanical Parameters
| Content | Parameter |
|---|---|
| Size (mm) | ≤553x293x454（L*W*H） |
| Weight (kg) | 40/45 (With Wooden Box) |
| Laser Welding Head Weight (kg) | ≤450 |
| Laser Head Type | Handheld Pendulum Galvanometer |
| Laser Connectors | Integrated Fibre Optic Cable |
| Fibre Length (m) | 7 |
| Focusing Lens | F150 |
| Focus Vertical Adjustment Range | ±10mm |
| Scanning Range (mm) | Cleaning Mode 0-14, Welding Mode 0-5 |
| Scanning Graphics | Straightness |
| Laser Head Operating Modes | Manually Operated |
Application
Doors and Windows Industry
Cabinet Industry
Advertising Industry
Home Improvement Industry
Auto Repair Parts
Home Appliance Industry
