Laser Welding MachineBTX1500
Lightweight Design
High Performance
Quick Start
Multiple Protection
Consultation Email:sales@btxtec.com
Service Hotline:400 6016 900
Product Advantage*

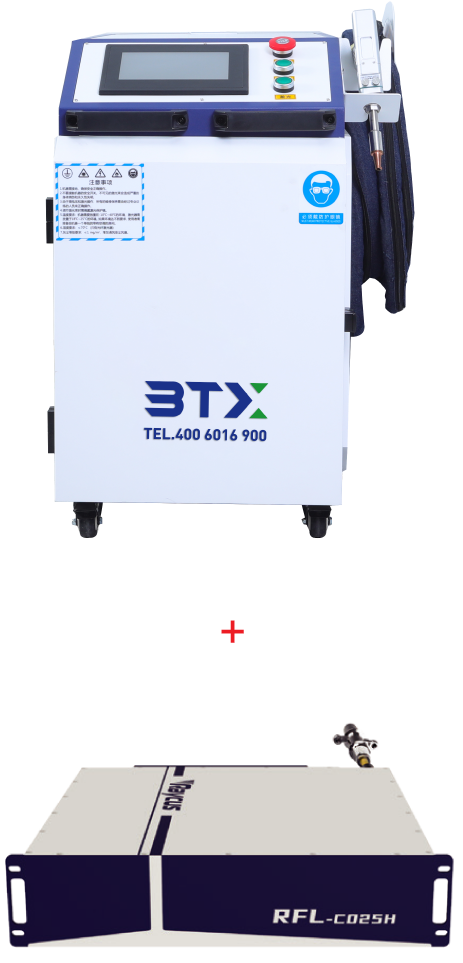

Configuration of the Raycus Welding General Series
Water-cooled laser for handheld welding
Water-cooled laser for handheld welding
Raycus Welding Series
Water-cooled laser for handheld welding
Water-cooled laser for handheld welding
Lightweight
Smallest size in the industry, 64-81 per cent smaller than before
37-63 per cent weight reduction
37-63 per cent weight reduction
High Efficiency
Continuous light output 7*24 hours
High beam quality fundamentally guarantees high product efficiency
High beam quality fundamentally guarantees high product efficiency
High Reliability
Long time aging test, power fluctuation ＜1%
Clever Design
Output fibre optic cable, water-cooled interface, power cable, control cable same side output
Conforms to the modular design of the welding machine
Conforms to the modular design of the welding machine
High Integration
Water-cooled handheld welding laser with one hand to hold external AC power supply
Integrated welder for more efficient fibre optic cable locking head adaptation
Reduced armoured tube diameter reduces drag from handheld welding
Integrated welder for more efficient fibre optic cable locking head adaptation
Reduced armoured tube diameter reduces drag from handheld welding
High Stability
Six of the industry's highest levels of testing
Stable and reliable products, upgraded to IP66 rating
Stable and reliable products, upgraded to IP66 rating
High Adaptability
Cancellation of network and serial ports
Comes with 1.5 metre control wire terminal block
Adaptation to soldering wiring + communication scenarios
Comes with 1.5 metre control wire terminal block
Adaptation to soldering wiring + communication scenarios
High Stability
01
Absorption and removal of heat by circulating water, stable welding quality under high power operation and long working time.
High Power Carrying
02
Faster welding speed and greater welding depth to meet the welding needs of large workpieces and thick plate materials.
High Welding Quality
03
Stable cooling system guarantees a stable and consistent welding process, higher weld quality, flat and beautiful weld quality even under greater intensity.
Versatility
04
Equipped with a variety of features such as stable and efficient wire feeding, beam oscillation welding, etc., it can significantly improve the quality of welding and easily cope with a variety of complex welding tasks.
Highly Expandable
05
Can be used with a wide range of equipment such as robots, shifters, rotary axes, etc. for automated welding.
Product Parameters*
Water-cooled Series BTX1500
| Content | Parameter |
|---|---|
| Models | BTX1500 |
| Laser Type | Continuous Laser |
| Fibre Optic Connector | QBH Interface |
| Indicator Light | Red Light |
| Operating Mode | Continuous or Modulated |
| Power Adjustment Range | 10％-100％ |
| Protective Gas | Argon, Nitrogen |
| Torch Weight | 0.7 kg (Gun Body) |
| Equipment Size | 110*50*90 |
| Electrical Power | AC220V±5％50HZ |
| Cooling Method | Water Cooling |
Application
Doors and Windows Industry
Cabinet Industry
Advertising Industry
Home Improvement Industry
Auto Repair Parts
Home Appliance Industry
